Sipura SPA-2002

This hard phone is another ATA (analog telephone adaptor). It enables you to connect your POTS (plain old telephone system) phones to the Internet. Think of it as a phone jack for VoIP. It has one ethernet port and two RJ11 phone jacks. This is one of the most feature rich and easy to use ATA that we have tested. Out of the box, it is configured for DHCP. This means that it gets its IP address from your DHCP server automatically. Full documentation can be found at
Sipura's site.

NOTE: We have seen instances where installing the SPA-2002 behind a firewall which blocks ICMP packets causes problems with registration. Try turning off any ICMP blocking on your firewall.

You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack and dial:
     ****  (four asterisks)
then dial:
      110 #
and you will be told the IP address of your device (e.g.

Go to any browser equipped computer on your network and enter the address:
http://<IP ADDRESS>/
(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1).

Click on the "Admin Login" button near the top right side of the screen, then click on the "Line 1" tab.

Globalink VOIP Phone Service

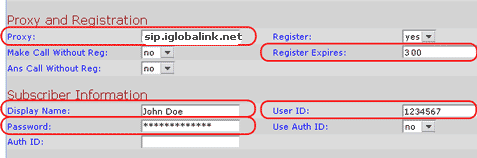

You need to modify only a few parameters from the factory default. They are listed here:


Display Name
Enter your full name, this will show up as part of your callerid.

User ID
Enter the phone number you chose when you signed up for Globalink  service.

Enter the password that you chose when you signed up for Globalink  service.

Sipura setup for Globalink Voip Phone Service

Click on the "Submit All Changes" button at the bottom of the form.

Sipura setup for Globalink Voip Phone Service.

Change the “Preferred Codec” to G729a . Also change the “Use Pref Codec Only” to Yes. You can do this for both Line 1 and Line 2 (i.e. if you are going to use Line 2).

Sipura setup for Globalink Voip Phone Service

You can now make calls without dialing any access codes. Please just dial country code and then the number.
